Electrical Winches

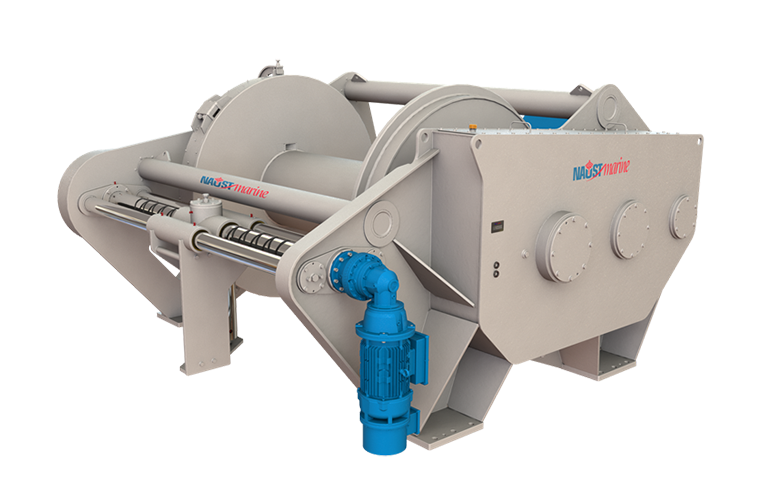

Trawl winches
  • Any size trawler; bottom, pelagic or seine
  • Compact and lightweight design
  • Heightened power for smooth and quick responses, maintaining fishing gear in optimal geometry
  • Attached AC/DC or PM motor, ready for installation
  • AC or DC with regeneration option / PM motors
  • Vertical or horizontal motor arrangements
  • Electric or pneumatic brakes
  • Redundant mechanical chain-spooling drive
  • Quality bearings and fitted seals
  • Reinforced smooth or grooved drum for synthetic tow line (Dyneema or similar)
  • Electric Spooling Gear with diamond shaft
  • Sturdy and service-friendly spooling gear roller arrangements
  • Full hot Zinc Metallizing
  • Automatic Trawl Winch Control system option

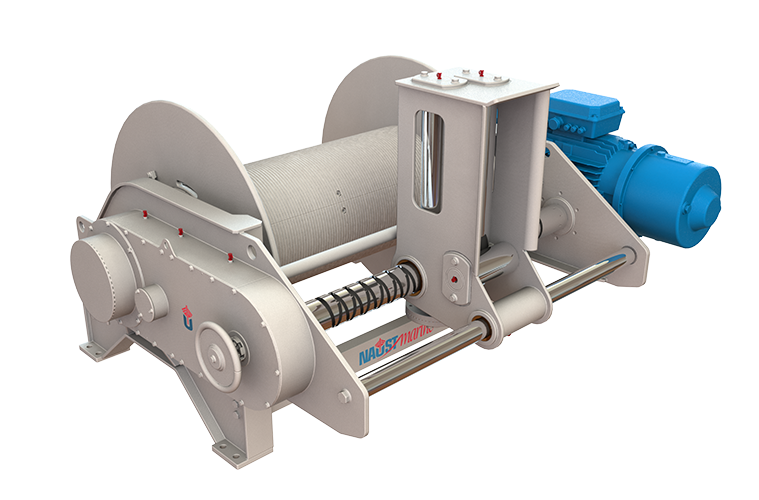

Net Sounder / Cable winches
  • Work independently and can be mounted with any type of trawl winch system.
  • Standard and custom power and drum arrangements
  • Regenerative and non-regenerative options
  • Mechanical spooling to any wire diameter or optional Electrical Spooling Gear (ESG)
  • Available stand-alone or integrated with Automatic Trawl Winch (ATW) Control system
  • Local deck controls and wireless remote-control options
  • Magnetic fail-safe motor brake
  • Sturdy and compact unit
  • Remote service available through vessel’s internet connection

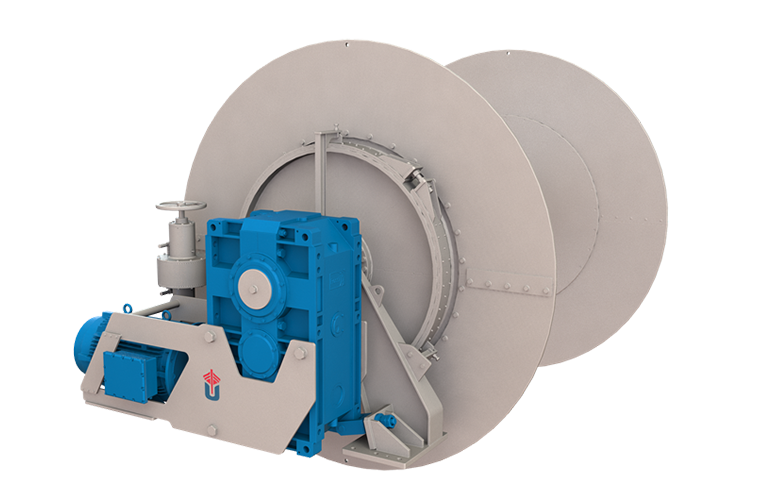

Net drum winches
  • For all types of trawls/nets
  • Typical storage capacity is from 5 m³ to 40 m³
  • Custom speed and pulls available
  • Band brakes on drum or electro-mechanical brake in the motor
  • Net spooling devices/arrangements available
  • Remote service available through vessel’s internet connection

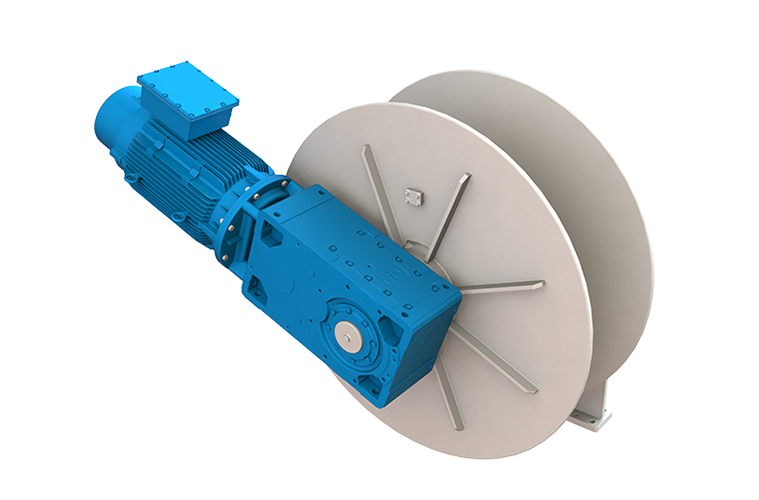

Sweepline winches
  • Custom pull and speed arrangements
  • Helical-bevel gearbox or planetary gearbox for compact footprint
  • Delivered standard without spooling gear – (optional)
  • Enhanced functionality in the control system; tension control, synchronization between winches, “brake open” function and more
  • Remote service available through vessel’s internet connection

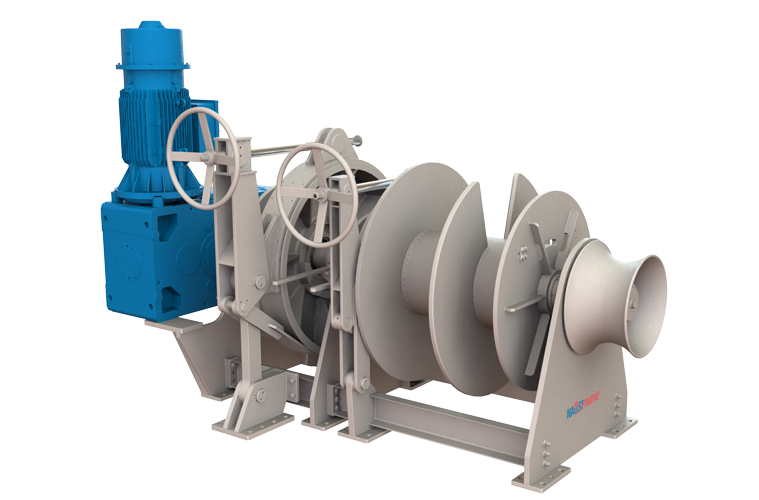

Anchor & Mooring winches
  • Custom manufacturing to meet customer requirements
  • Provisions for chain, wire, and/or mooring
  • Double (1x motor for two drums) or single arrangement
  • Wildcat for any size chain diameter
  • Declutchable drums for wired anchor arrangement or mooring operations
  • Multiple pull and speed options
  • Vertical or horizontal arrangement
  • Manual band brake fitted on winch
  • Capstans and warping heads available
  • Test approvals from class society on winch and controls e.g., DNV GL, ABS, Lloyds

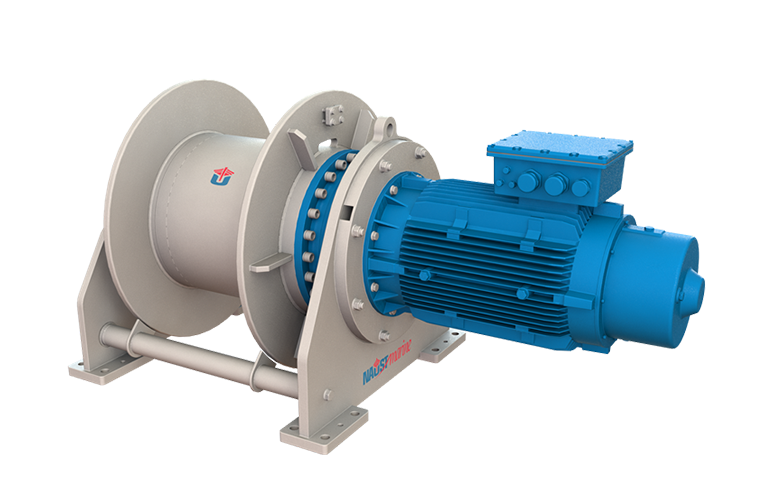

Gilson winches

Naust Marine offers a wide variety of proven, reliable, and efficient winches to support the operations of fishing, research, oil and gas, and workboat vessels. The Gilson winches are in turn connected to retriever winches, for haul-back and keeping constant tension on the Gilson lines.

Options:

  • Pull from 1 – 25 ton, depending on application and vessel size.

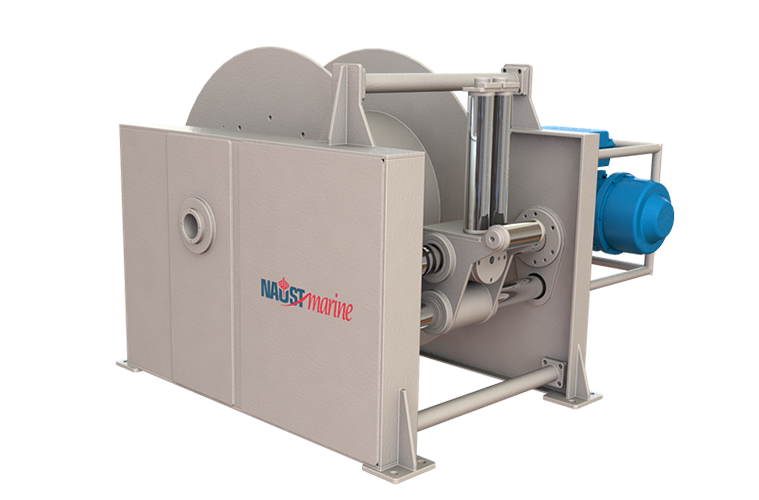

Research winches
  • Towing (towed body, trawl)
  • Side scan sonar
  • CTD and other signal cable
  • Single and double Net drum

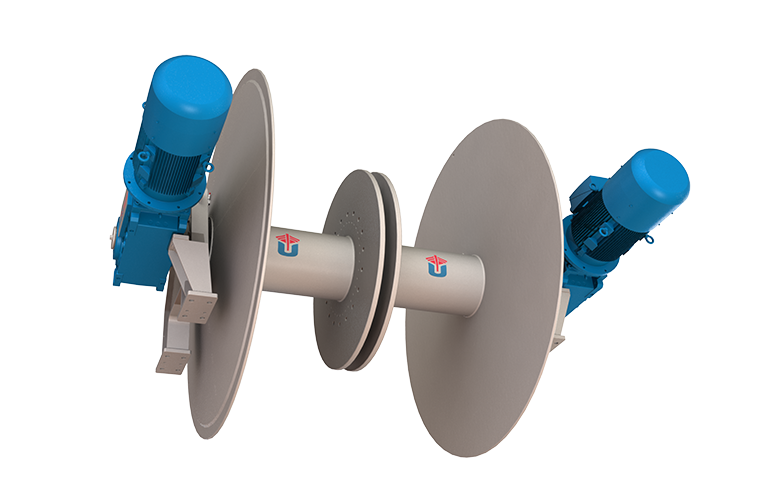

Fly-shooting / Purse Seine winches

Sample Fly-shooting package:

  • Fly-shooting winches
  • Double Net drums
  • Center winch
  • Auxiliary winches
  • Electric cabinets for Fly-shooting winches control with water cooled drives
  • Naust Marine Automatic Trawl Winch (ATW) Control system
    Keeps the trawl in optimal geometrical shape, resulting in maximum catch with minimum operational cost
  • Smart View
    Supplies remote support and service, designed to address the challenges of establishing a secure and reliable remote session to the ship control system
    via satellite communications

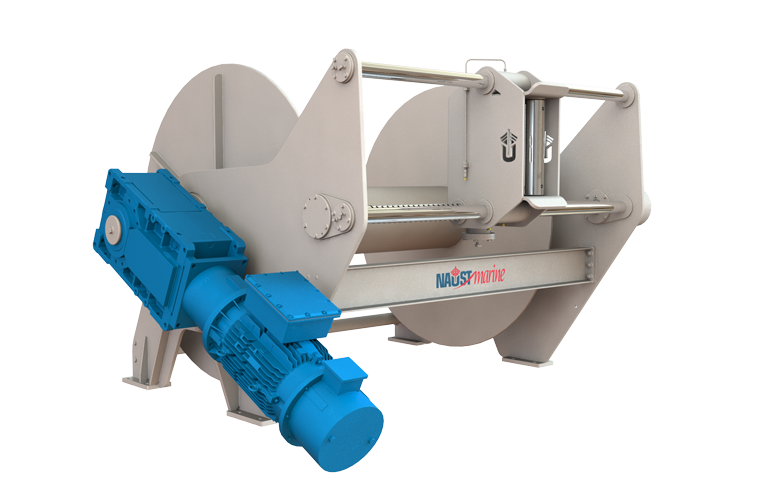

Auxiliary winches

Naust Marine designs and manufactures all auxiliary winches needed for vessel operations, fishing or otherwise. The auxiliary winches can be interconnected to the ATW control system, where winch status is displayed on a special display. The display shows motors speed, motor load, temperature as well as alarm logging, service hours and more. All auxiliary winch controls can be connected to the internet for remote service and troubleshooting by our specialized technicians. Innovative control functions available; synchro control for up to four winches at a time (e.g. Gilson winches), tension control, pre-programmed functions and more.
